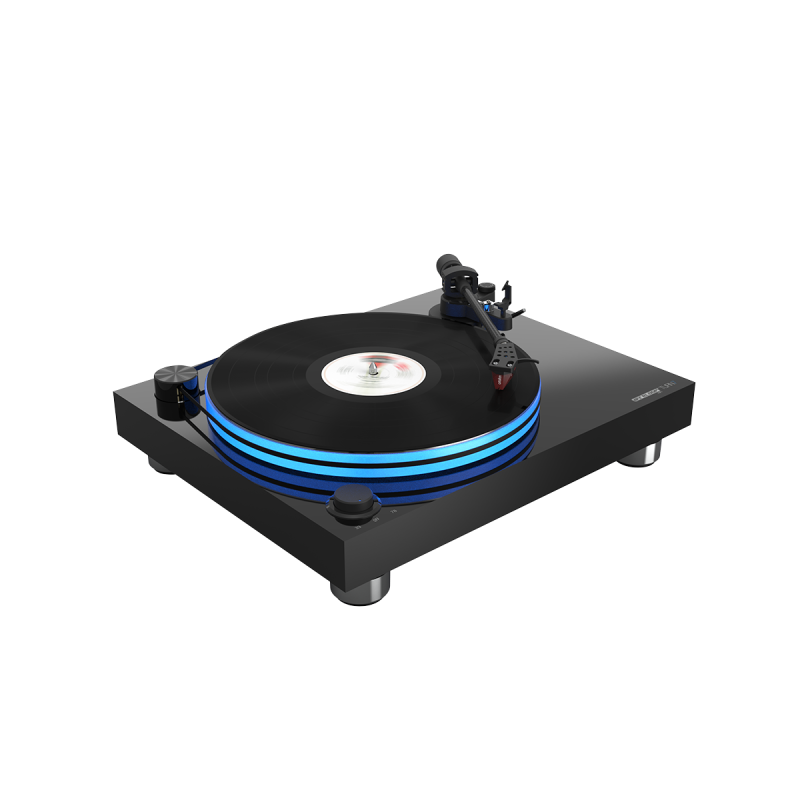

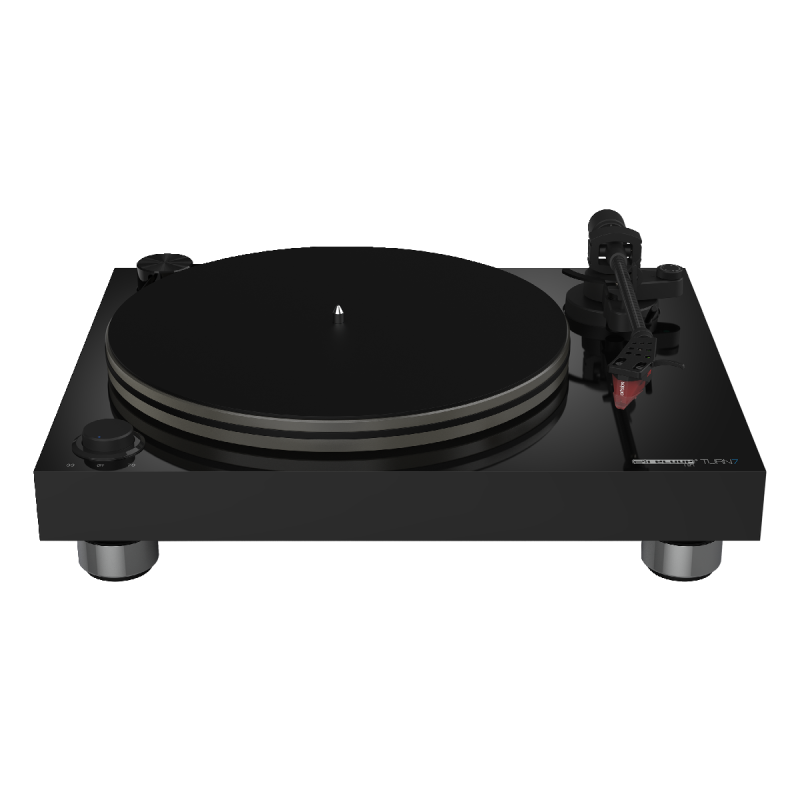

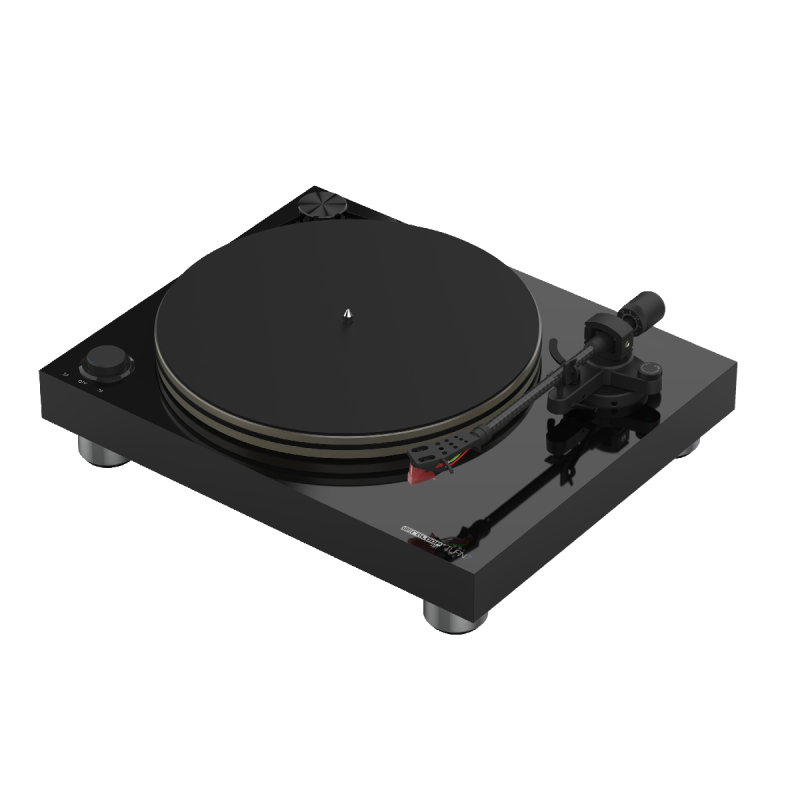

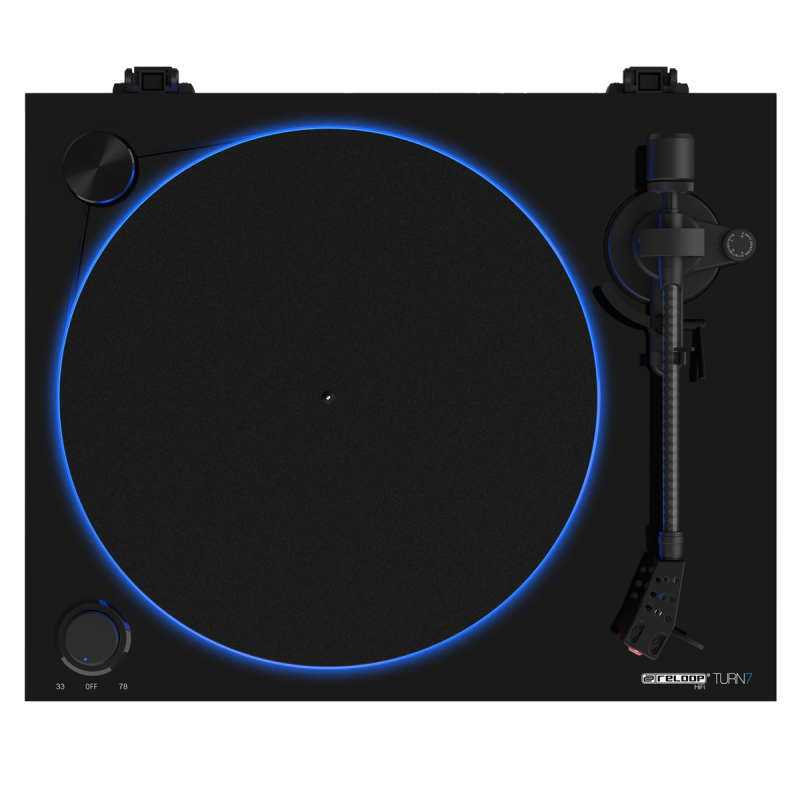

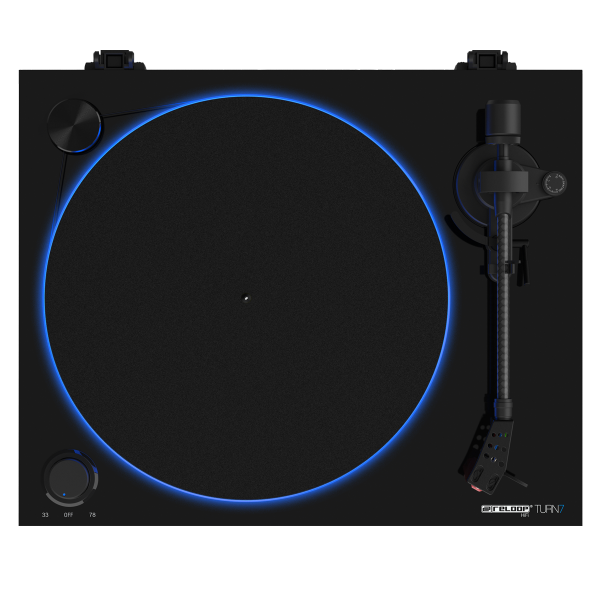

TURN 7 Premium HiFi Turntable with Ortofon 2M Red Cartridge

Model: AMS-TURN-7
UPC: 4043034171120
The Turn 7 bridges the gap between high-end HiFi turntables and uncompromising design
Please log in to see your price

Product Properties

Description:

Sound meets design
The Turn 7 bridges the gap between high-end HiFi turntables and uncompromising design. The belt-driven turntable meets the exacting demands of audiophile music fans thanks to precisely manufactured components. The acrylic platter with LED lighting and the external drive belt make the Turn 7 an absolute eye-catcher.

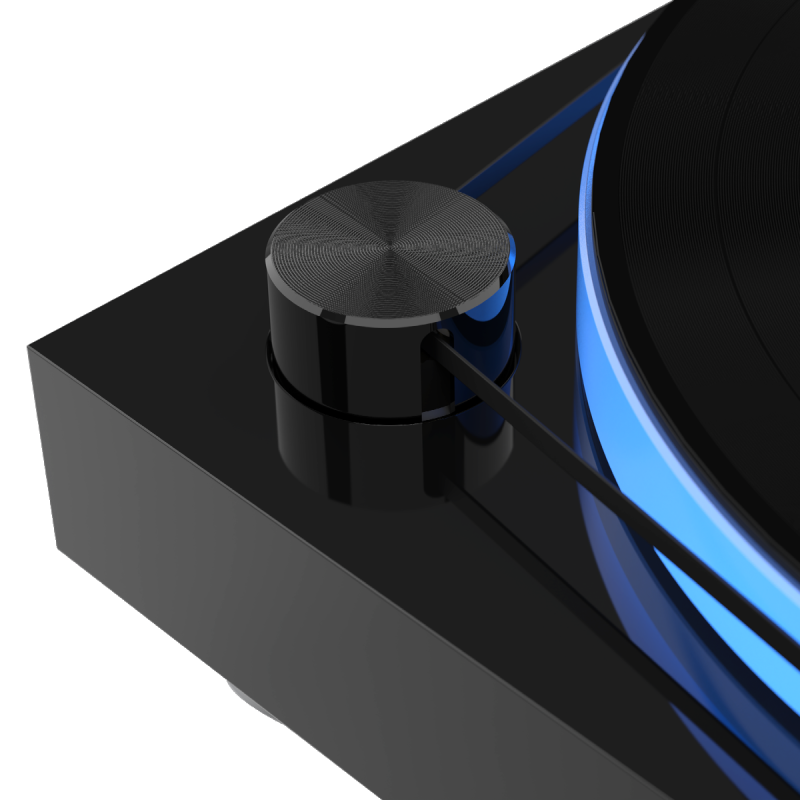

Powerful & steady drive

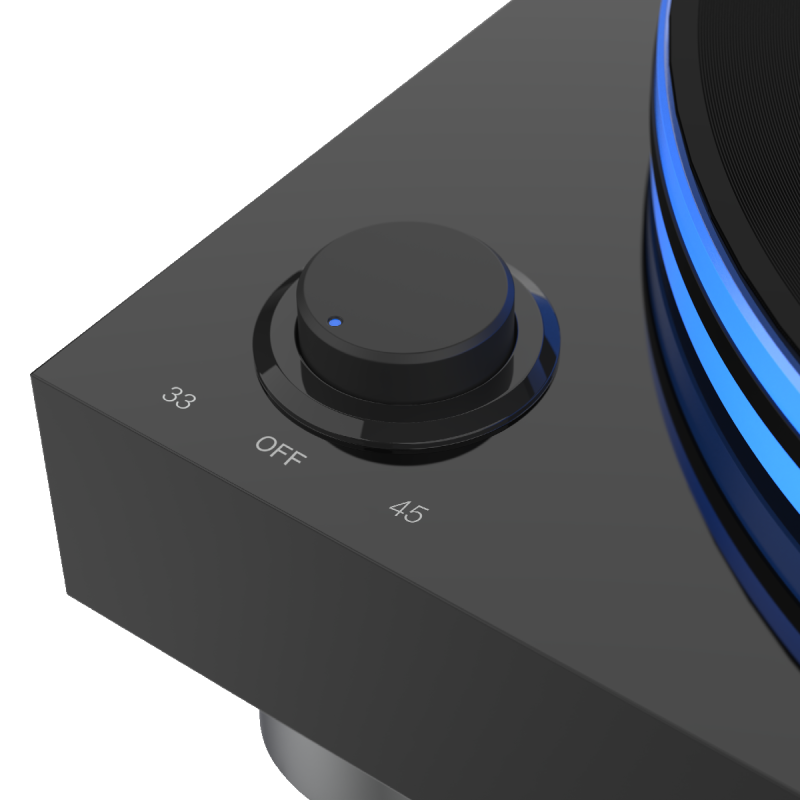

A decentralised, low-vibration DC motor drives the Turn 7. The integral flat belt runs gracefully along the turntable exterior, ensuring smooth operation and a sophisticated appearance. The start/stop rotary switch allows you to select between the turntable's two speeds (33 and 45 RPM).

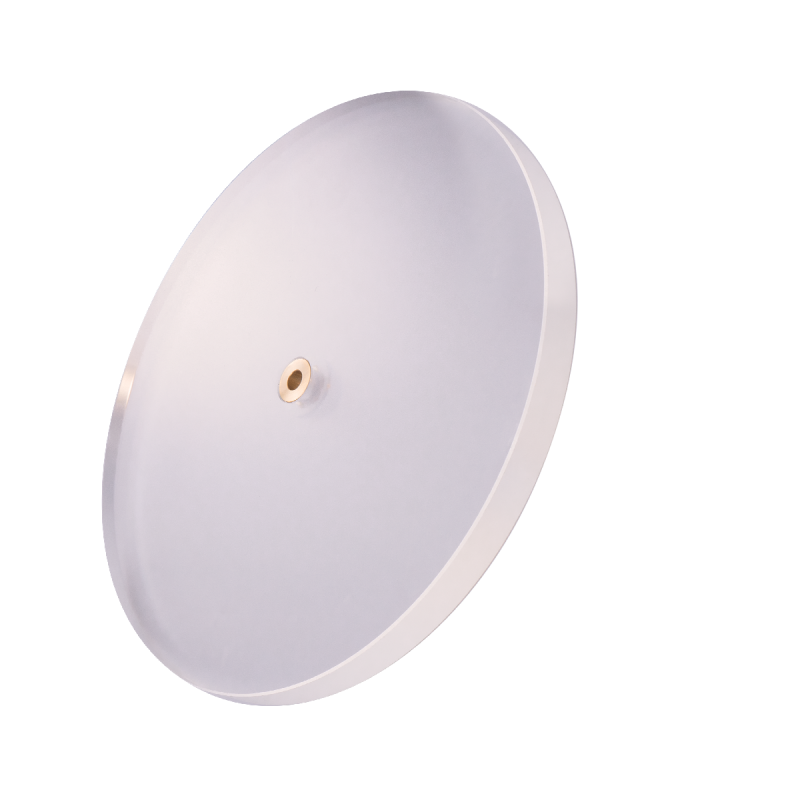

Heart of acrylic: The turntable platter
The acrylic platter is 20 mm thick, weighs 1.7 kg, and has outstanding evenness thanks to precision manufacturing. It also has excellent antistatic characteristics. As a result, crystal-clear audio is possible without using a platter mat. The satin finish of the material creates a focal point and contrasts with the otherwise plain design of the belt-driven turntable.

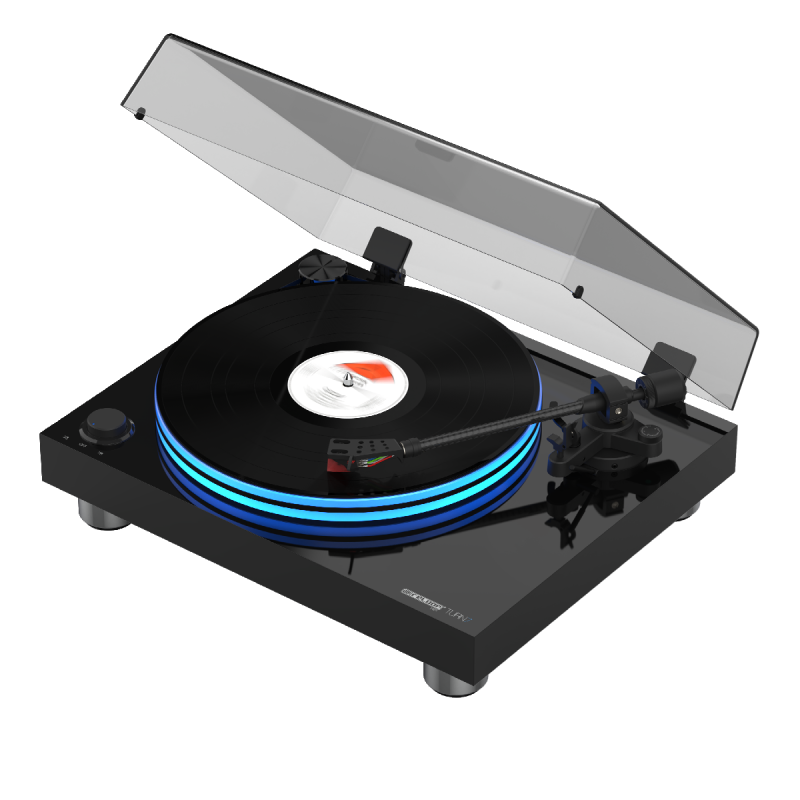

Let there be light: LEDs inside
One of the unique features of the Turn 7 is the optional, blue platter illumination. Inconspicuously placed beneath the platter, multiple LEDs with a diffuser cover sets the mood and creates a warm and inviting ambience.

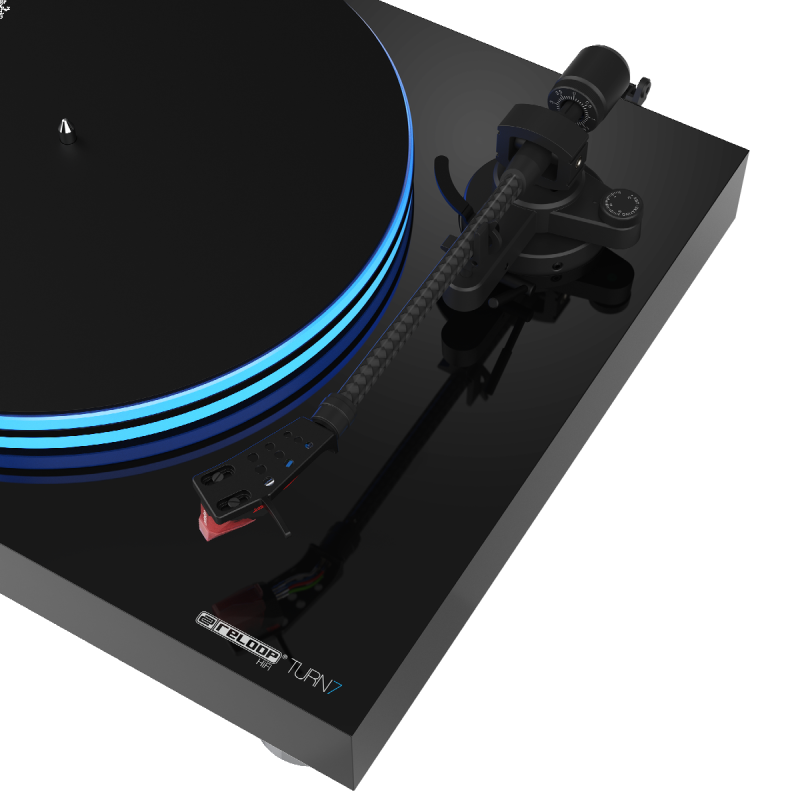

Top-class tone arm
The high-quality carbon tone arm has exceptional acoustic properties. The turntable's authentic sound is brought out to its full potential by effectively cancelling out vibrations. The ability to adjust the height (vertical tracking angle – VTA) and an anti-skating adjustment ensure maximum precision.

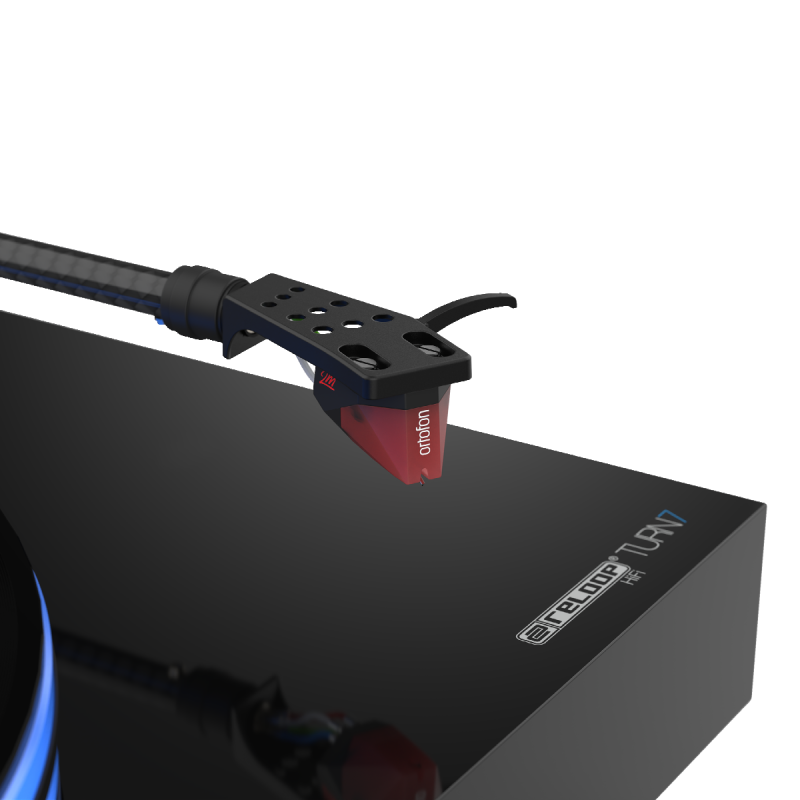

Ortofon 2M Red pre-installed
The turntable comes with the Ortofon 2M Red cartridge system pre-installed. The Ortofon 2M Red has an elliptical stylus tip and excellent sonic characteristics, including first-rate sound accuracy and reproduction. The Ortofon 2M Red is a highly versatile cartridge system with an open, dynamic sound and warm tones. The universal headshell connection (SME) adds more options for cartridge systems.

Meticulously perfected

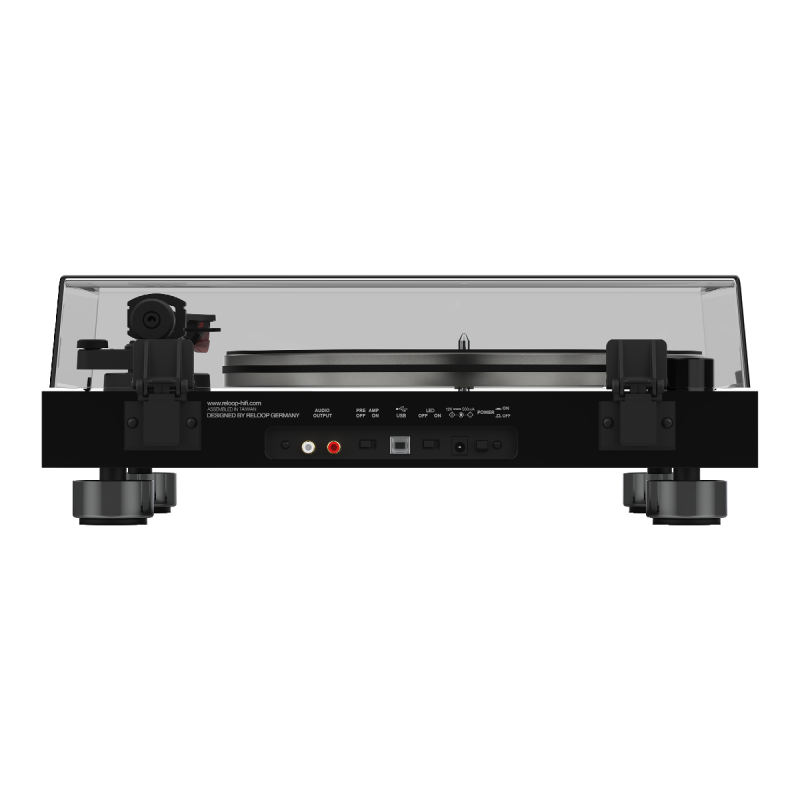

In addition to its high-quality preamplifier, the Turn 7 also features versatile switching between line and phono signals. The gold-plated corrosion-resistant RCA connectors ensure the best possible signal transmission. The built-in USB output allows you to digitise vinyl records.

Simple design & pure functionality

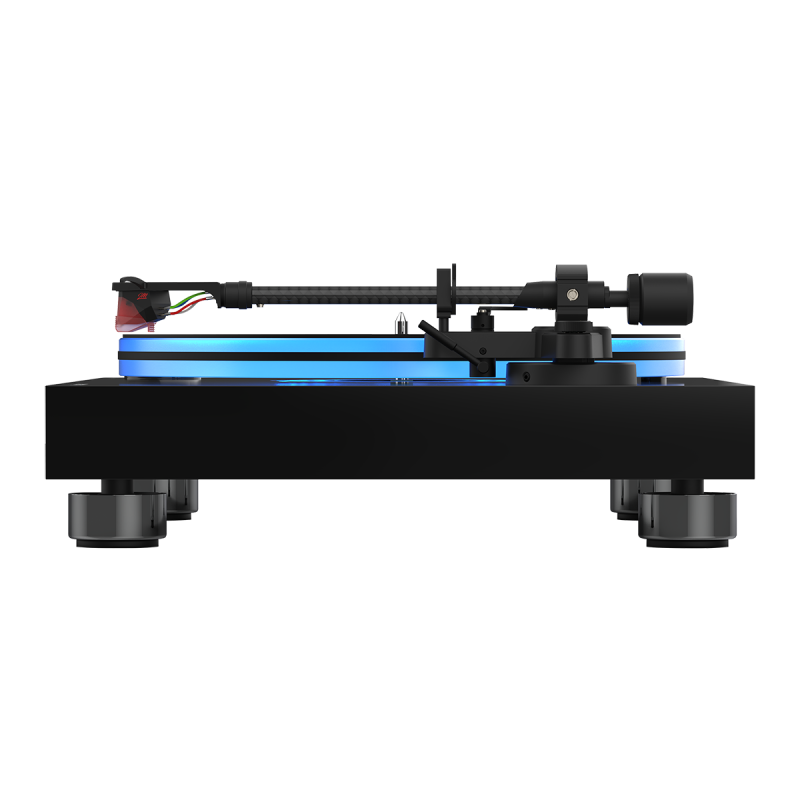

The sturdy MDF wooden plinth and height-adjustable isolator feet with aluminium surround provide effective decoupling for the turntable. The high-gloss piano lacquer is a classy contrast to the timeless minimalism while emphasising the Turn 7's superior quality.



Premium belt-driven HiFi turntable

Decentralised DC motor with external drive belt on the acrylic platter

Fully manual operation with motor control switch for switching between speeds (33/45 RPM)

Precision-machined, 20 mm thick solid acrylic platter (1.7 kg) with outstanding levelling and electrostatic properties for a crystal-clear sound

Indirect blue LED lighting on the acrylic platter (can be switched on/off)

Audiophile carbon tonearm with height adjustment (VTA) and anti-skating adjustment

Pre-installed Ortofon 2M Red cartridge for optimised sound reproduction and fidelity

Universal headshell connection (SME) for additional flexibility

USB recording function: Recording and digitisation of vinyl via the simply USB connection for PC/Mac

High-quality integrated preamp (switchable phono/line output)

Gold-plated, corrosion-resistant audio connections (removable power and RCA cable)

Height-adjustable, shockproof aluminium feet for effective decoupling

Solid MDF plinth with piano finish and a timeless design

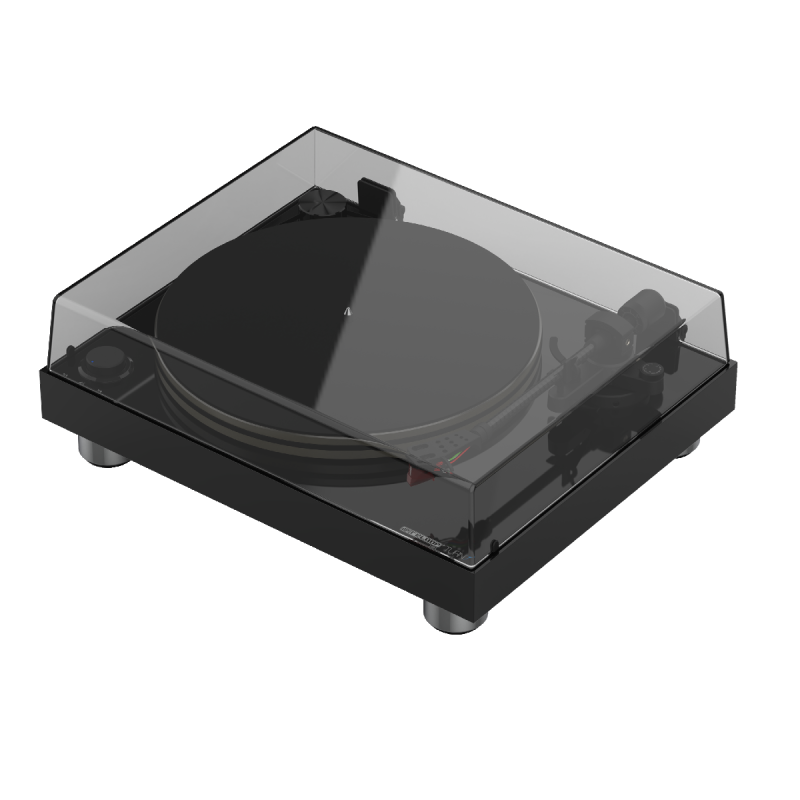

Incl.: dust cover, 2x hinges, felt mat, international power supply (UK/EU/US), RCA cable, headshell with Ortofon 2M Red (pre-installed), 7" aluminium adapter, acrylic turntable platter, allen key, USB-cable, instruction manual & counterweight

Turntable Section:

Type of turntable: Belt-Driven manual Turntable System with USB Interface

Drive: Belt drive

Motor: DC Motor

Rotation speeds: 33 1/3, 45 RPM

Starting Torque: //

Start-up time / rpm change: //

Wow and Flutter: 0,2% WRMS

S/N Ratio: >45dB or higher

Breaking System: Manually

Turntable Platter:

Turntable Platter: Acrylic glass

300 mm diameter

Weight About 1.7 kg

Tonearm Section:

Type: Straight Tonearm

Effective Length: 223.6 mm

Effective Tonearm Mass: 18.5g

Overhang: 18.61 mm

Tracking Error Angle: ±1.5°

VTA Adjustment Range: - 2 ~ 4 mm

Applicable Cartridge Weight: 7.2 ~ 11.2 g (incl. Headshell)

Anti-Skating Range: 0 - 4 g

Cartridge:

Ortofon 2M Red

Output voltage at 1000 Hz, 5 cm/sec.: 5.5 mV

Channel balance at 1 kHz: 1.5 dB

Channel separation at 1 kHz: 22 dB

Channel separation at 15 kHz: 15 dB

Frequency response: 20-20.000 Hz + 3 / - 1 dB

Tracking ability at 315Hz at recommended tracking force: 70 µm

Compliance, dynamic, lateral: 20 µm/mN

Stylus type: Elliptical

Stylus tip radius: r/R 8/18 µm

Tracking force range: 1.6 - 2.0 g (16-20 mN)

Tracking force, recommended: 1.8 g (18 mN)

Tracking angle: 24.7°

Internal impedance, DC resistance: 1.3 kOhm

Internal inductance: 700 mH

Recommended load resistance: 47 kOhm

Recommended load capacitance: 150-300 pF

Cartridge colour, body/stylus: Black/Red

Cartridge weight: 7.2 g

General:

Terminals: 1x PHONO/LINE Out, Build in Phono Stage (Pre Amp)

Power Supply: 12 V 1A DC

Power consumption: 12W

Dimensions: 420(W) x 356(D) x 148(H) mm

Weight: 8.2 kg
