CAT 6 FTP specification
Supports high-resolution audio streaming up to DSD1024
99.999% oxygen-free copper conductors
Asymmetric twist-rate conductor geometry
HDPE spacer for reduced inter-pair skew and crosstalk

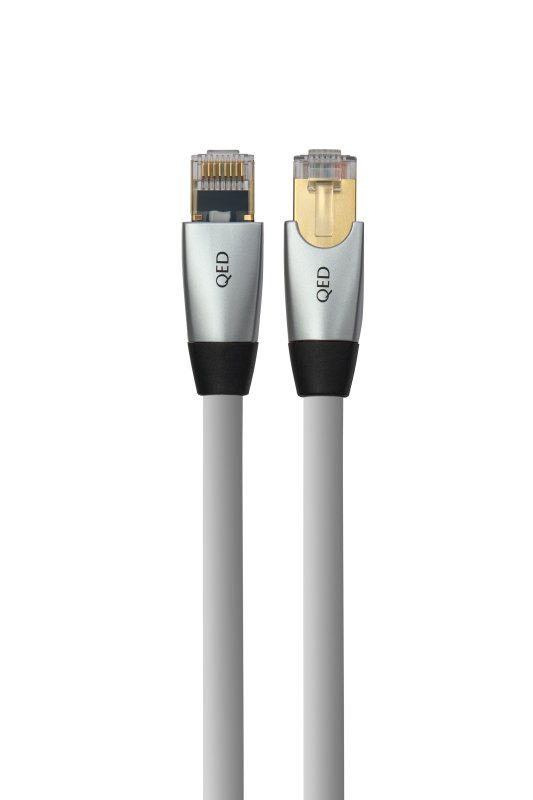

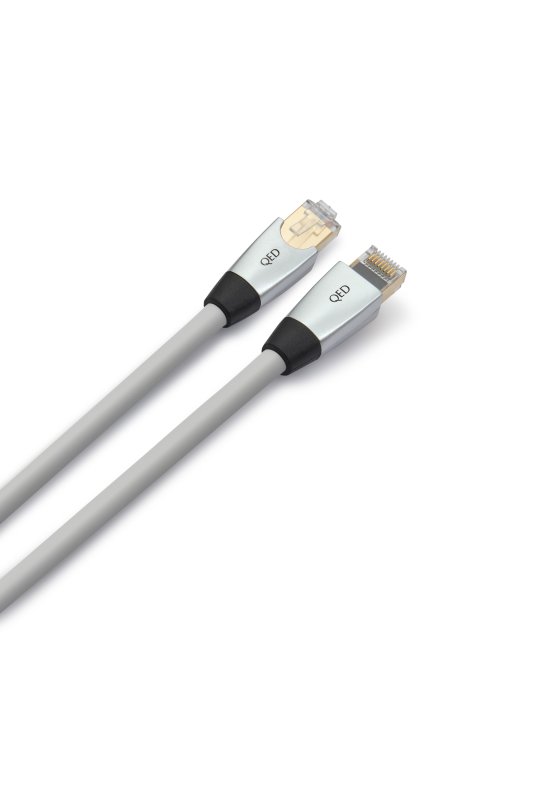

Shielded gold-plated RJ45 connectors
Ultra-flexible TPE outer jacket
Conductor Material: Stranded 99.999% Oxygen-Free Copper
Conductor Construction: 8 × 7/0.2 mm (24 AWG)
Screening Material: Aluminium Mylar and tinned OFC drain wire
Dielectric: HDPE
Loop Resistance: 0.093 Ω/m
Capacitance Imbalance: <330 pF/100 m
Delay Skew: 45 ns/100 m
Characteristic Impedance: 100 Ω
Jacket Outside Diameter: 6.8 mm
Jacket Finish: Stone Grey TPE
Available Lengths
0.75 m
1.5 m
3.0 m
6.0 m
Warranty
Performance Ethernet is backed by a 2-year manufacturer's warranty, extended to 5 years when you
register your product. It's one more reason to connect with confidence.
