USB-IF High Speed® Certified
Supports high-resolution audio up to 24-bit/192kHz and DSD512
Individually screened 99.999% oxygen-free copper data conductors
Low-loss dielectric design
Triple-screened construction
Isolated power and data pathways
Gold-plated USB connectors
Ultra-flexible TPE outer jacket
Conductor Material: Stranded 99.999% Oxygen-Free Copper
Conductor Sizes: 1P 7/0.127 + 1C 7/0.254 + 1C 7/0.254 + 1C 7/0.127 + Drain
Screening Material: Aluminium Mylar, tinned OFC drain and shield braid
Dielectric: Foamed Polyethylene
Loop Resistance: 0.093 Ω/m
Capacitance Imbalance: <330 pF/100 m
Delay Skew: 45 ns/100 m
Characteristic Impedance: 90 Ω
Jacket Outside Diameter: 6.8 mm
Jacket Finish: Stone Grey TPE
Available Versions

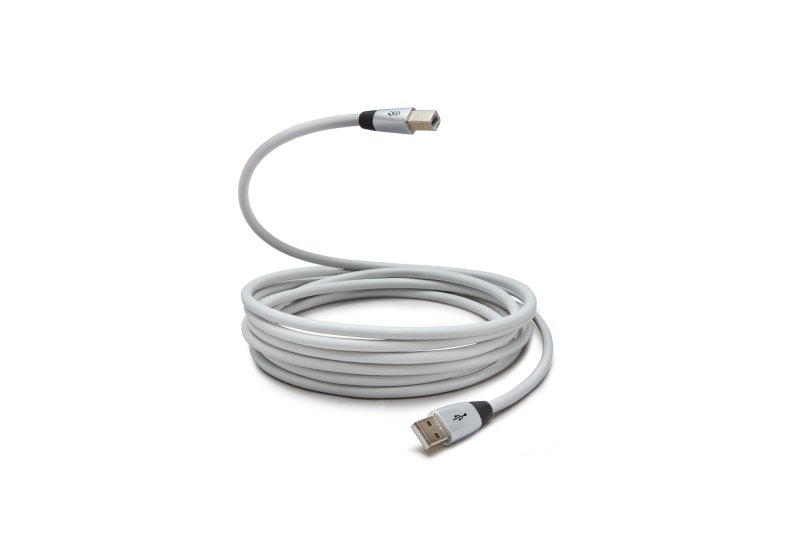

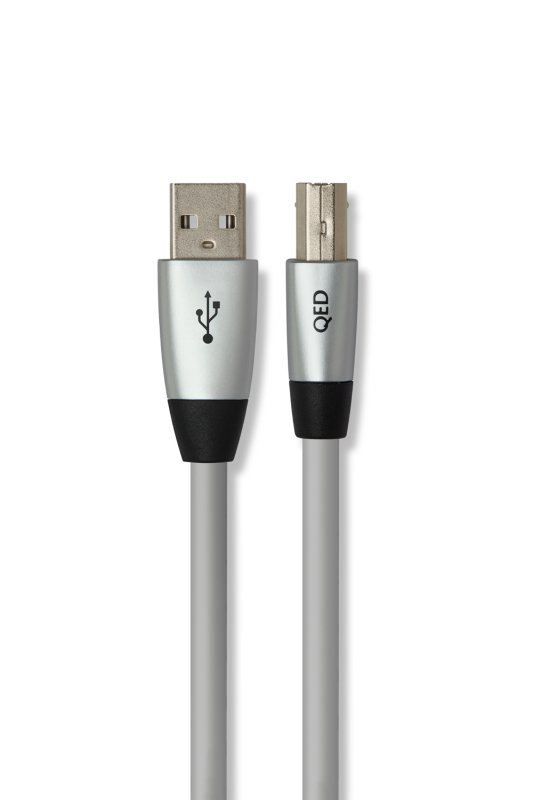

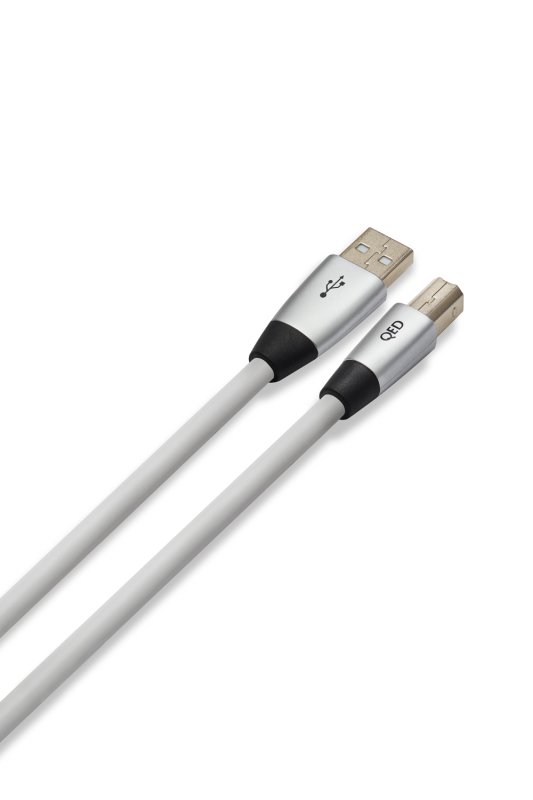

USB A to B
0.75 m
1.5 m
3.0 m
USB A to C
0.6 m
1.2 m
USB C to B
0.6 m
1.2 m
USB C to C
0.6 m
1.2 m
Warranty
Performance USB is backed by a 2-year manufacturer's warranty, extended to 5 years when you
register your product. It's one more reason to connect with confidence.
