Authentic HiFi turntable with precision belt drive
Supplied with pre-assembled Ortofon 2M Red cartridge
Optimised tonearm design for optimal tracking accuracy with flexible SME mounting
Integrated high-quality preamplifier, can be switched on/off (phono/line output)

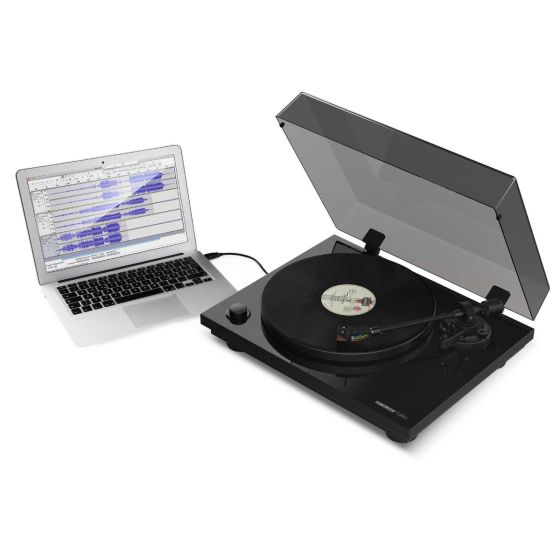

USB recording function: recording and digitalisation of vinyl via simple USB connection for PC/Mac
Semi-automatic stop function (can be activated optionally)
Manual tonearm lift for analogue playback pleasure
Low-vibration DC motor
Integrated motor control with large speed selector switch (33/45/78 RPM)
External DC power supply for trouble-free operation (100-230 V / 12 V / 500 mA)
Precision-machined die-cast aluminium platter for resonance optimisation
Infinitely adjustable anti-skating system with rotary wheel for optimum tracking accuracy
Gold-plated, anti-corrosion connectors (all cables removable)
Special turntable feet for effective decoupling
High-gloss piano-finish cabinet
On/Off switch on the back of the unit
Incl. Ortofon 2M Red cartridge pre-mounted on headshell, counterweight, dust cover incl. hinges, felt mat, aluminium turntable, 7" aluminium adapter, RCA & USB cable and international power supply (UK/EU/US)
TURN 3 MK2:
Type of turntable: Belt drive
Motor: DC Motor
Rotation speeds: 33 1/3, 45 & 78
Wow and Flutter: 0.2% WRMS
Analogue Output: Phono / Line, switchable
Connections: RCA Audio output (gold-plated), USB type B
Phono Output Level: 4.0 mV (with Ortofon 2M Red)
Line Output Level: 224 mV (with Ortofon 2M Red)
Tone Arm type: Straight
Effective Arm Length: 223.6 mm
Effective tonearm mass: 21.4 g
Overhang: 18.6 mm
Tracking force Range: 18 mN
Platter diameter: 300 mm
Anti-Skating adjustment: Yes
Type of cartridge: MM (Ortofon 2M Red)
Power consumption: 6W
S/N: >60 dB or higher
USB Audio Output with 48 kHz / 16-Bit
USB Funktion: USB rec. function
Supported Operating System: Windows & Mac
Dimensions: 450 x 352 x 138.7 mm (incl. Dust cover)
Weight: 6.5 kg
Ortofon 2M Red:
Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
Channel balance at 1 kHz: 1,5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 μMm
Compliance, dynamic, lateral: 20 μMm
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 μMm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1,3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Red
Cartridge weight: 7.2 g
