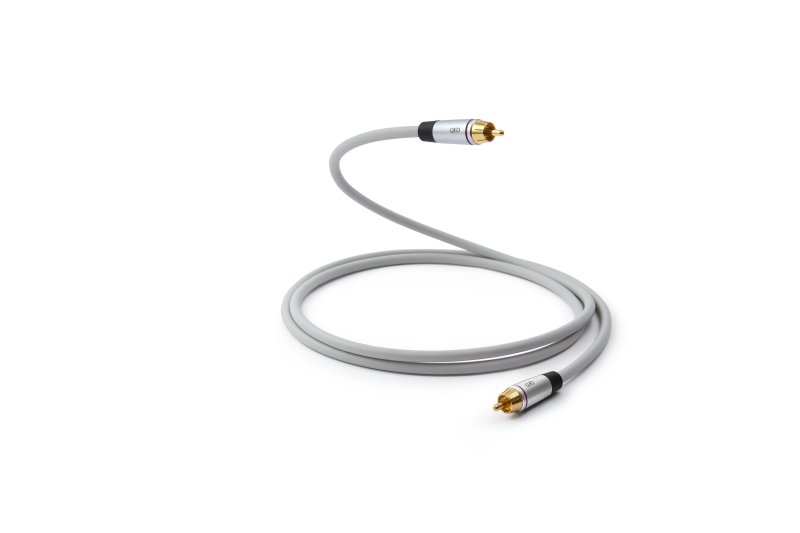

True 75Ω digital audio cable geometry
Solid-core 99.999% oxygen-free copper conductor
Dual-screen electromagnetic protection
Foamed polyethylene dielectric

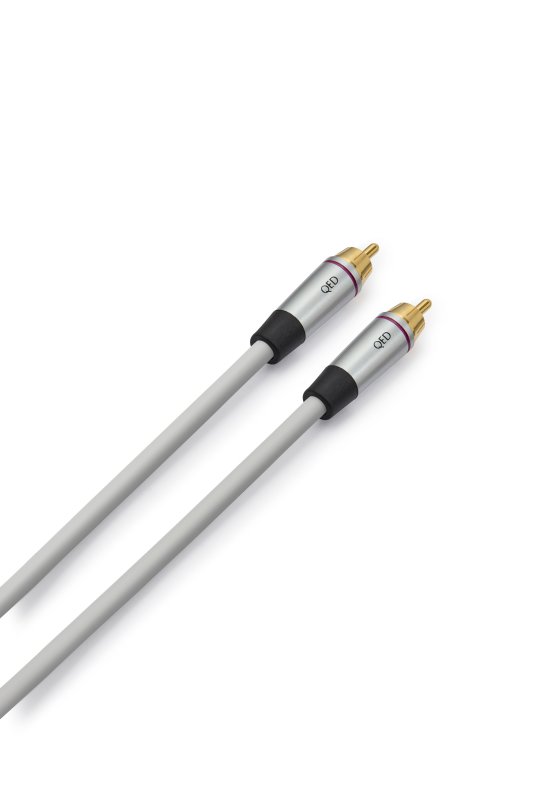

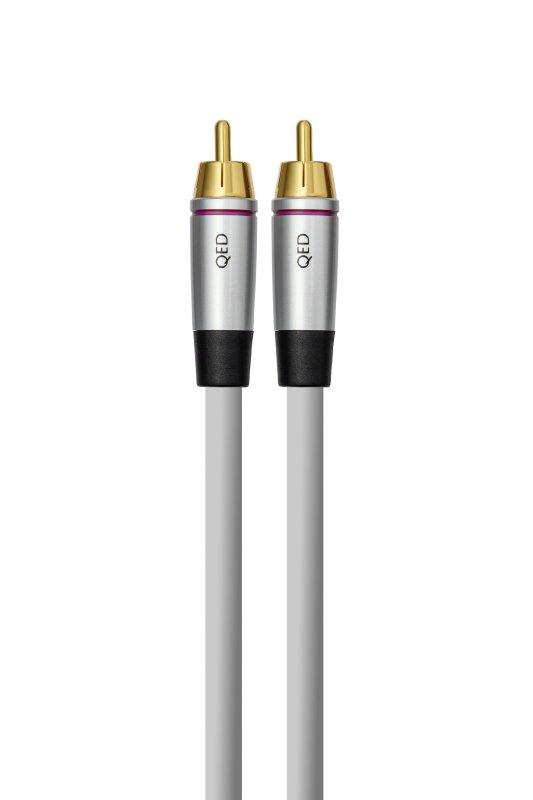

Gold-plated RCA/phono connectors
Flexible TPE outer jacket
Conductor Material: Solid 99.999% Oxygen-Free Copper
Conductor Construction: 1 × 1/0.58 mm (23 AWG)
Screening Material: Aluminium/Mylar Foil Plus Tinned Copper Shield Braid
Dielectric: Extruded Foamed Polyethylene
Loop Resistance: 0.075 Ω/m
Parallel Capacitance: 58 pF/m
Loop Inductance: 0.39 μH/m
Dissipation Factor: 0.0090 @10kHz
Characteristic Impedance: 75 Ω
Outside Diameter: 6 mm
Jacket Finish: Stone Grey TPE
Available Lengths
0.75 m
1.5 m
3.0 m
Warranty
Performance Digital Audio is backed by a 2-year manufacturer's warranty, extended to 5 years when
you register your product. It's one more reason to connect with confidence.
