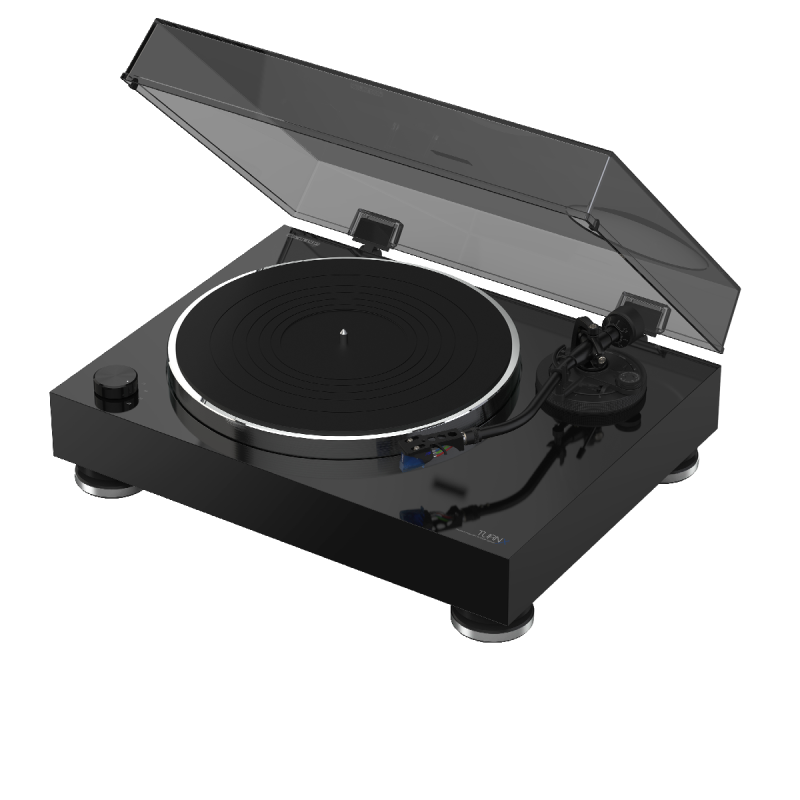

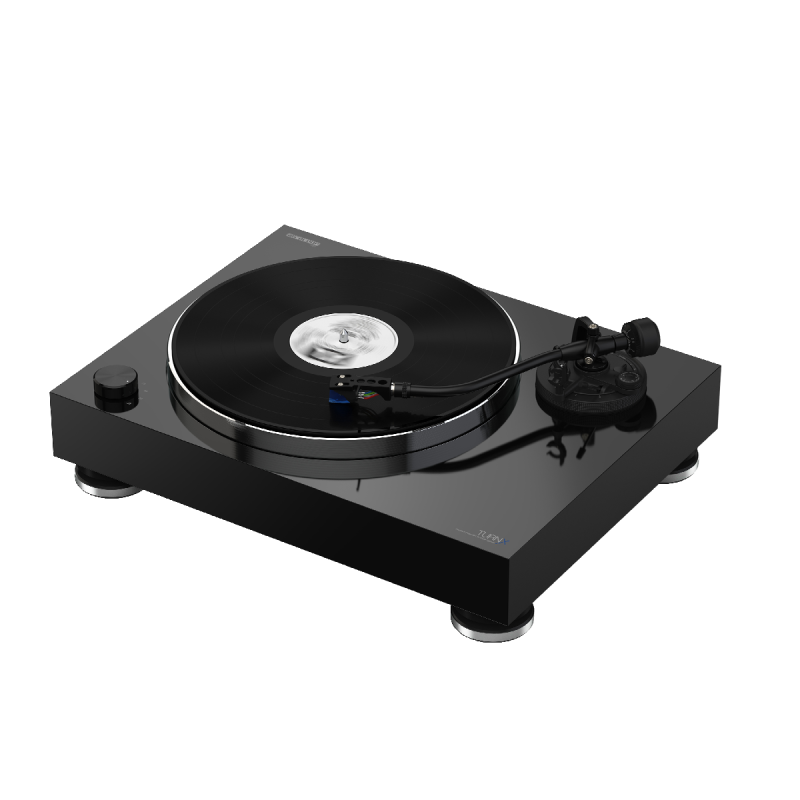

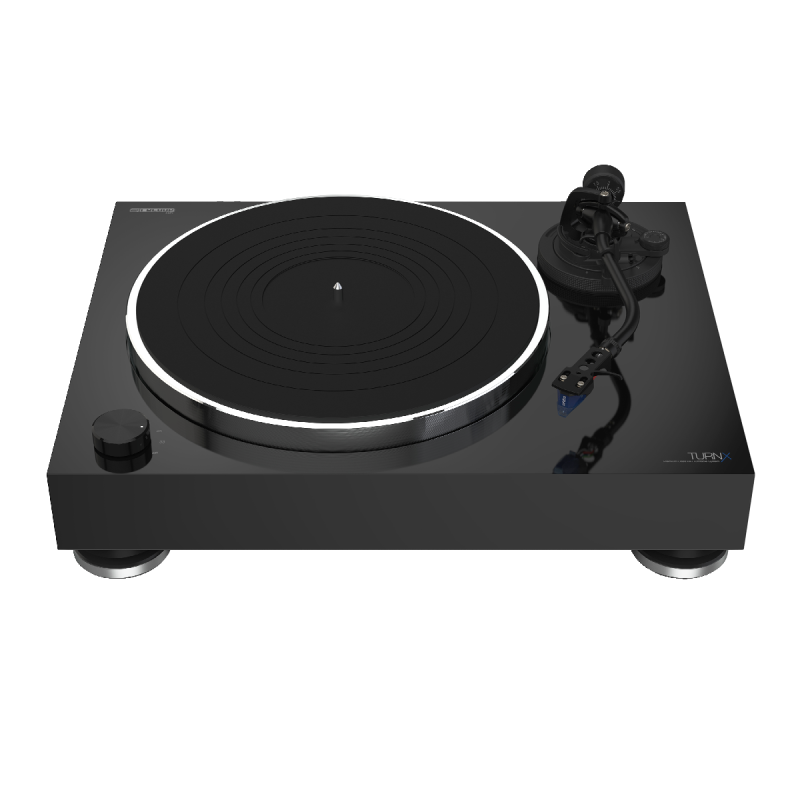

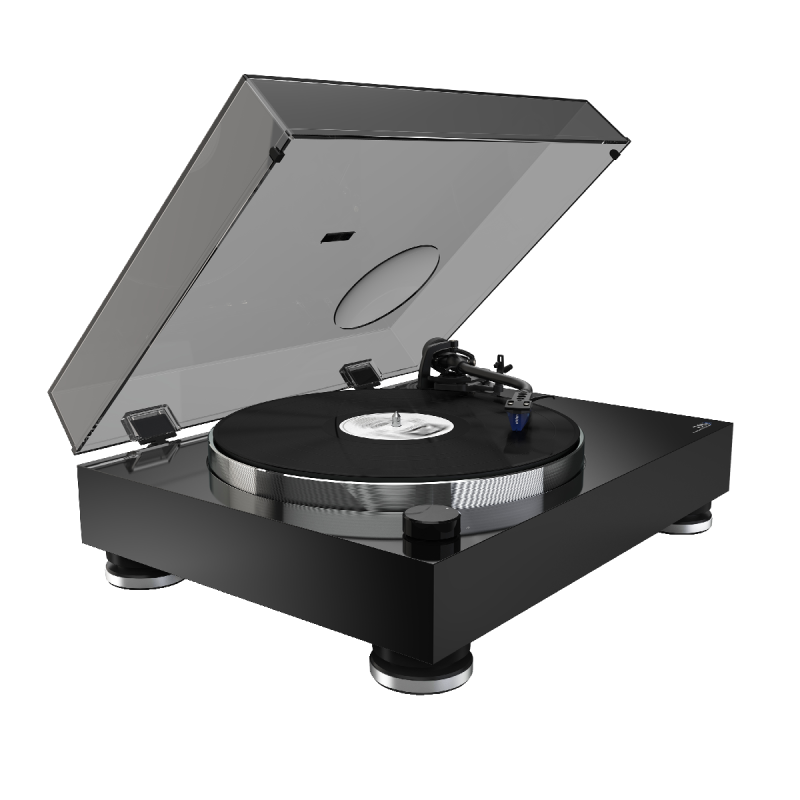

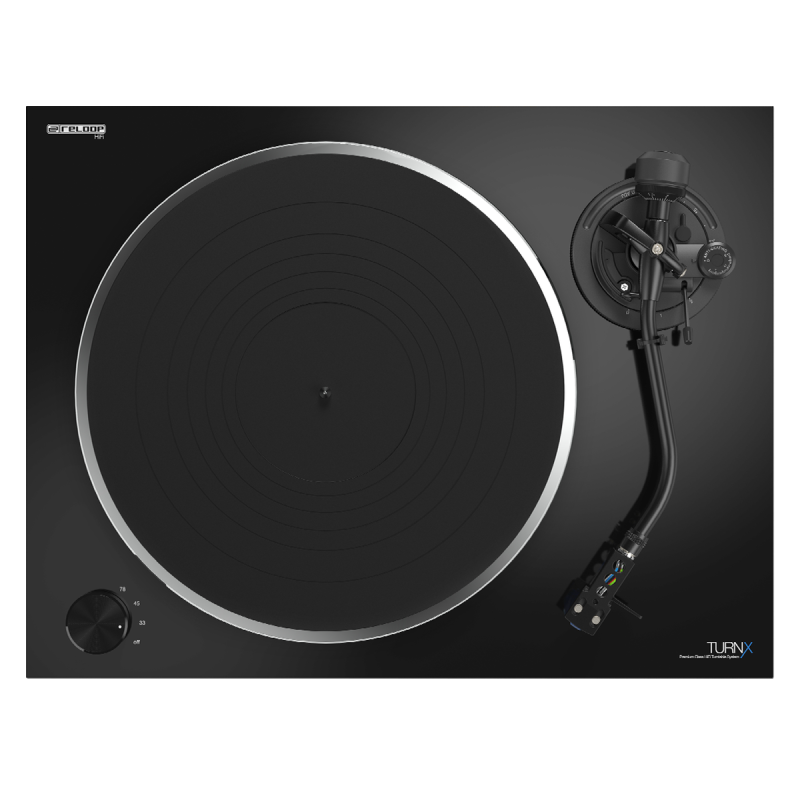

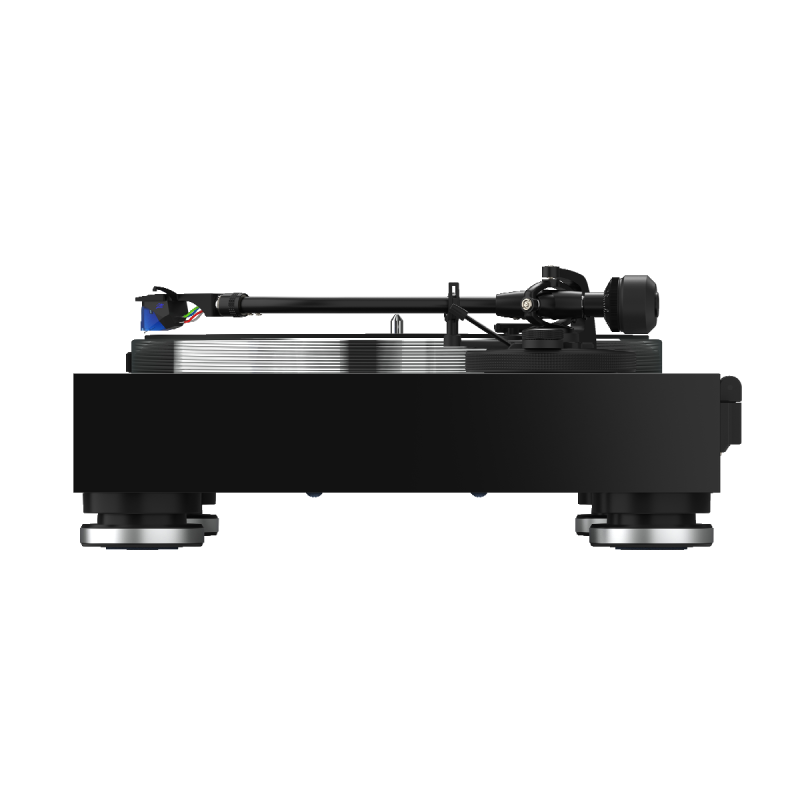

TURN X Premium HiFi Turntable with Ortofon 2M Blue Cartridge

Model: AMS-TURN-X
UPC: 4043034169295
Reloop's Turn X is a quartz-driven, high-end turntable that impresses in more ways than just its sound and premium aesthetics
Please log in to see your price

Product Properties

Description:

Premium Class HiFi Turntable System
Reloop's Turn X is a quartz-driven, high-end turntable that impresses in more ways than just its sound and premium aesthetics.

Designed with precision from the outset

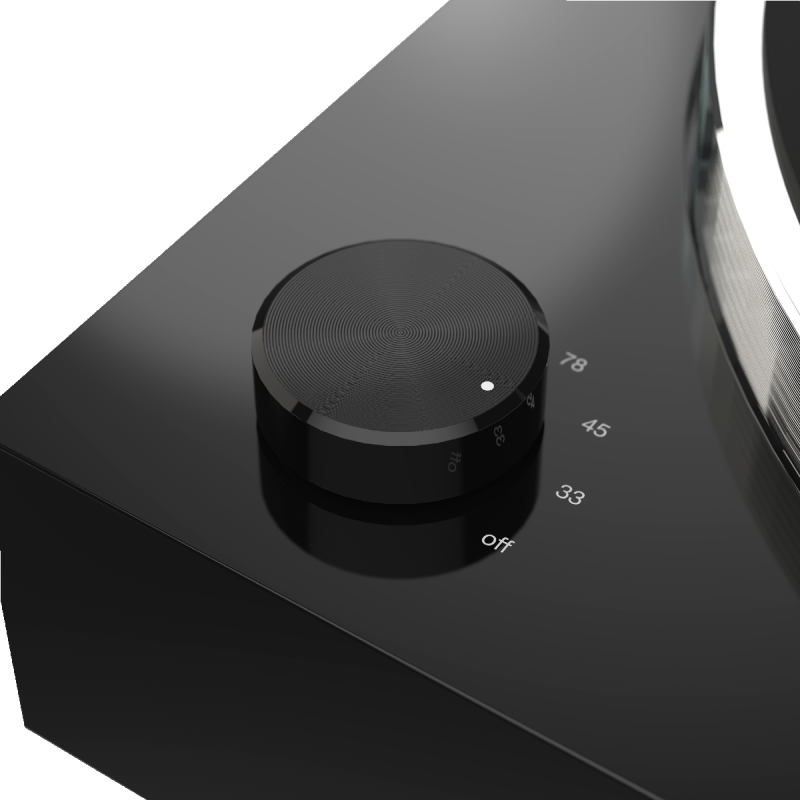

The Turn X's direct-drive DC motor offers incredibly accurate and consistent speeds. The high torque ensures lightning-fast start-up times and minimal variances of just +/-0.03%. The Turn X excels when operated in full manual mode, where its electronic brake and rotary switch for smooth starting and stopping, which also doubles as a speed selector (33, 45 and 78 RPM), shine.

Audiophile tonearm
The statically balanced S-shaped tonearm can be adjusted in height to change the cartridge's vertical tracking angle (VTA). The tonearm design guarantees free and fluid movement and optimum cartridge performance.

Balance perfection
A solid aluminium block supports the record player's precision-machined die-cast platter. Its hefty 2.1 kg, 332 mm diameter and 22.5 mm thickness ensure smooth, even movement. The damping rubber coating on the back of the turntable and the rubber mat provide excellent isolation properties and minimise vibrations.

Crystal clear sound quality

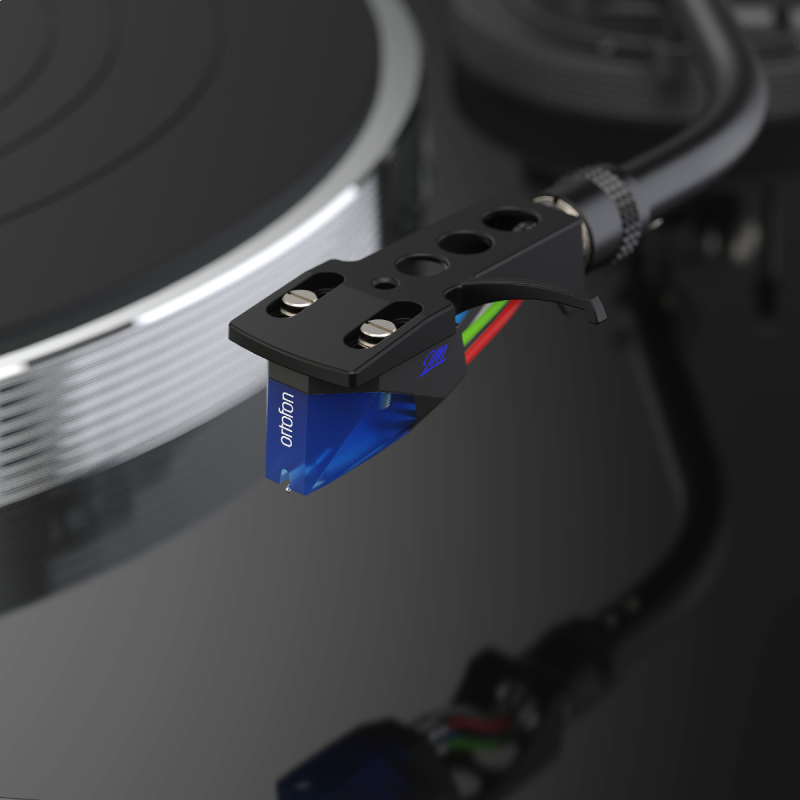

The Turn X has a high-quality Ortofon 2M Blue cartridge pre-installed, ensuring excellent dynamics and sound resolution to satisfy even the most discerning audiophiles. Another highlight: The universal SME connector enables a quick and easy cartridge system change if required.

Sound and nothing but sound
The turntable's solid MDF chassis is exceptionally sturdy and robust, keeping unwanted resonances at bay from the outset. As a bonus, the Turn X is effectively decoupled thanks to the height-adjustable isolator feet.

Design without compromise
In addition to meeting the exacting demands of vinyl enthusiasts, the Reloop Turn X is a true visual showpiece. The record player's sleek design, sophisticated one-button control, and classy piano lacquer finish make it a real eye-catcher.

Attention to detail

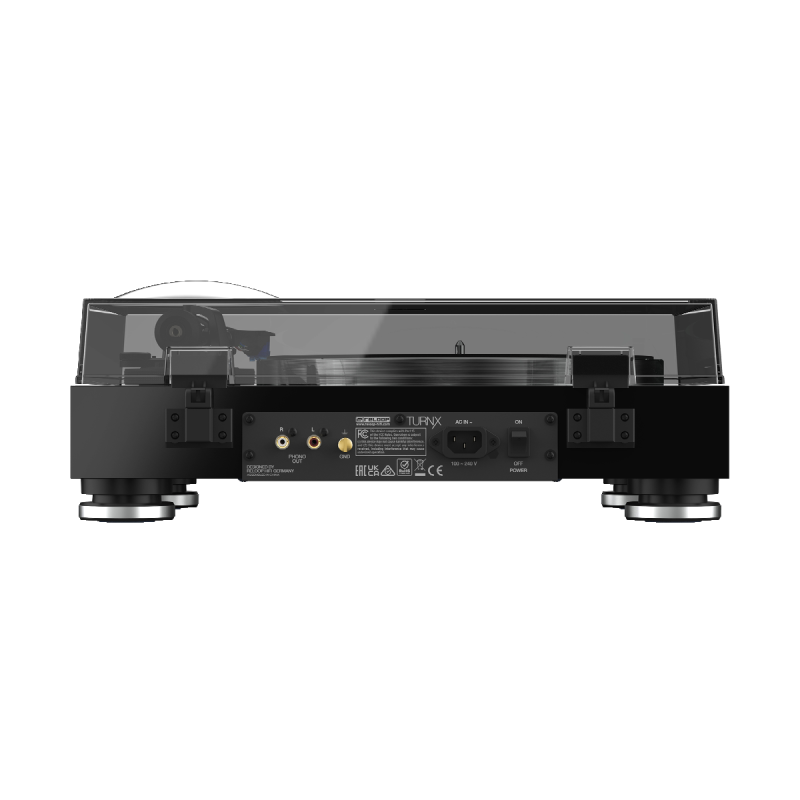

Last but not least, the Turn X features a gold-plated high-resolution phono output and a gold-plated ground connector for optimum signal transfer and corrosion resistance. Interference is reduced even further by the power switch's ultra-low noise insulation.



Quartz-controlled, premium HiFi turntable

Super high torque, direct drive DC motor with ultra-precise rotation speed

Quick start-up and drift-off rotation speed less than +/-0.03%

Full manual operation with motor control-switch to select three different speeds (33, 45 and 78 RPM)

Precision machined, extra heavy aluminium die-cast platter for a perfectly balanced rotation (305 mm diameter, 22.5 mm thick, 2.1 kg)

Deadening rubber covering rear platter surface & special 5 mm rubber mat for optimized resonance control and damping

Sunk-in platter cavity construction

Static-balanced S-shaped tonearm with VTA adjustment

Adjustable anti-skating wheel for optimal pick-up tracking

Pre-installed Ortofon 2M Blue cartridge for excellent dynamics and sound resolution

Universal headshell connector (SME) provides added flexibility

Counterweight supplied supports a wide variety of cartridges

Premium, high-resolution audio phono outputs (with separate grounding connection)

Gold-plated, corrosion-resistant audio connections (detachable power and RCA cables)

Built-in switching power with ultra-low noise isolation design

Rigid construction, with extra-heavy, solid MDF wooden plinth

Height-adjustable, shock-resistant insulator feet for effective decoupling

Timeless design with high-gloss, black piano finish

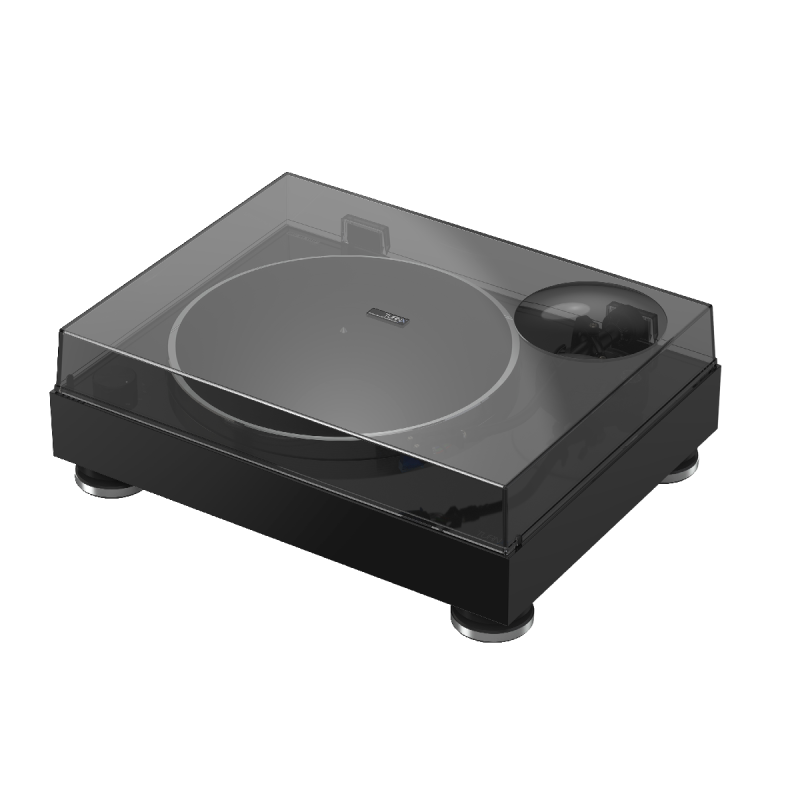

Accessories included: Turntable platter, dust cover, 2x dust cover hinges, balance counterweight, PHONO RCA cable with grounding cable, AC power cord, rubber mat, instruction manual, Ortofon 2M Blue cartridge & headshell

Turntable Section:

Type of turntable: Direct drive, fully manual

Drive: Quartz driven upper-torque direct drive with precision rotation

Motor: DC Motor, 16-Pole, 3-Phase, brushless

Rotation speeds: 33 1/3, 45 & 78 RPM

Starting Torque: More than 4500 g/cm

Start-up time / rpm change: Less than 0.3 sec.

Wow and Flutter: Less than 0.1% WRMS (JIS WTD)

S/N Ratio: More than 60dB (DIN-B)

Breaking System: Electronic brake

Turntable Platter:

Turntable Platter: Aluminium die-cast

305 mm diameter

Weight About 2.1 kg

Tonearm Section:

Type: Static balanced S-Shape

Effective Length: 230 mm

Overhang: 15 mm

Tracking Error Angle: Less than 3 degrees

VTA Adjustment Range: 0-6 mm

Applicable Cartridge Weight: 17 – 25 g (incl. Headshell)

Anti-Skating Range: 0-3 g

Terminals: 1x PHONO Out (gold-plated), 1x GND Earth Terminal

Cartridge:

Type of cartridge: Ortofon 2M Blue

Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV

Channel balance at 1 kHz: 1.5 dB

Channel separation at 1 kHz: 25 dB

Channel separation at 15 kHz: 15 dB

Frequency response: 20-20.000 Hz + 2 / - 1 dB

Tracking ability at 315Hz at recommended tracking force: 80 µm

Compliance, dynamic, lateral: 20 µm/mN

Stylus type: Elliptical

Stylus tip radius: r/R 8/18 µm

Tracking force range: 1.6-2.0 g (16-20 mN)

Tracking force, recommended: 1.8 g (18 mN)

Tracking angle: 20°

Internal impedance, DC resistance: 1.3 kOhm

Internal inductance: 700 mH

Recommended load resistance: 47 kOhm

Recommended load capacitance: 150-300 pF

Cartridge colour, body/stylus: Black/Blue

Cartridge weight: 7.2 g

General:

Power Supply: AC IN 100~240V, 50/60 HZ

Power consumption: 3W

Dimensions: 460(W) x 367.3(D) x 172.6(H) mm

Weight: 10.35 kg

Incl.: dust cover + 2x hinge, rubber mat, power supply cable, RCA cable with grounding connection (gold-plated), Headshell with Ortofon 2M Blue (pre-installed), turntable platter, operation manual & counterweight
